Mitech MEW-G1000 Microcomputer Screen Series Steel

Brand:

Mitech

Model:

Measuring range:

4% -100% of Maximum test power

Resolution Accuracy:

≤ ± 1% of indication

Communication storage:

Working time:

Main unit weight:

4500kg

Dimensions:

1060*660*2950mm

Package dimensions:

Total weight:

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related
  • Product Overview

    Mitech MEW-G microcomputer screen series steel wire tensile testing machine,by controlling the high-pressure pump to drive the screw movement,mainly for the prestressed steel strand tensile strength test and analysis.It is characterized by high precision gap sealing cylinder, microcomputer display technology, digitized processing and high precision data acquisition and control technology. Its performance is stable, powerful, accurate data processing, strong structure, simple structure, high reliability, simple operation and friendly interface.Widely used in metal and non-metallic processing industry, quality inspection departments quality testing, scientific research and other areas of higher education institutions.It is the necessary professional precision testing equipment for improving production efficiency and saving production costs.

    Function & application

    l Quality control link of Metal processing manufacturing

    l Quality control link of nonmetal manufacturing industry

    l Teaching experiment of scientific research in Institutions of higher learning

    l Material analysis test of scientific research institutions

    l Quality inspection link of Quality inspection department

    Working Principle

    Test machine is the product of test machine technology and mechanical transmission technology, sensor technology and automatic control technology and so on. It consists of three parts: drive system, control system and measurement system.The drive system is mainly used for the movement of the beam of the testing machine, through the control valve to adjust the beam movement;the control system is operated by the console control testing machine, and the state of the testing machine and the test parameters can be obtained through the display screen;the measuring system uses force sensor, signal amplifier, photoelectric encoder and data processing system to measure force, deformation and beam displacement.Drive system, control system, measurement system and other subsystems coordinate with each other to complete the material pull, pressure, bending and other mechanical performance testing.

    Working Conditions

    l Operation Temperature:Ambient temperature45℃;

    l Relative humidity:20%~80%;

    l In an environment free from vibration, corrosive medium and high magnetic field;

    l Installed on a flat basis.

    l Power supply voltage fluctuation does not exceed 10% of rated voltage.

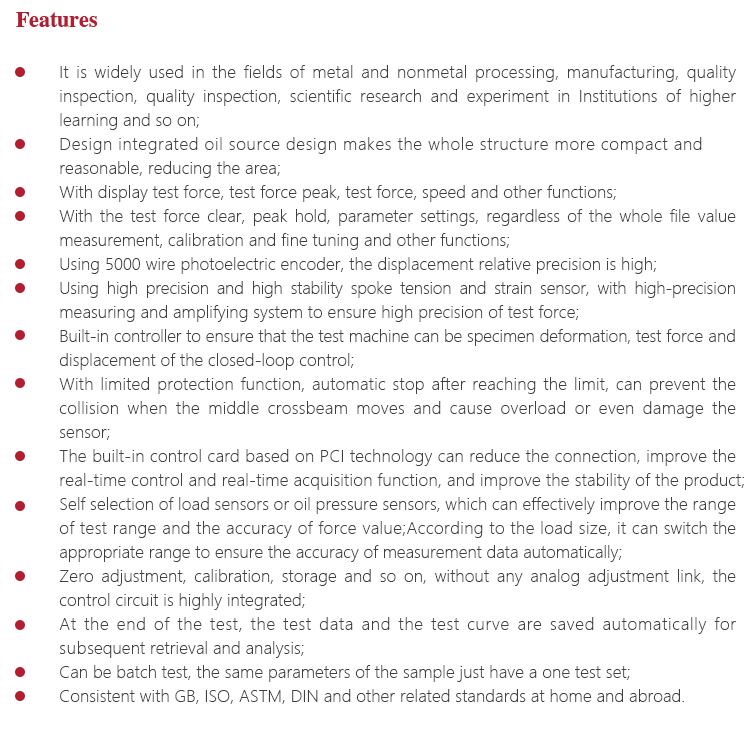

    Instrument Features

    l It is widely used in the fields of metal and nonmetal processing, manufacturing, quality inspection, quality inspection, scientific research and experiment in Institutions of higher learning and so on;

    l Design integrated oil source design makes the whole structure more compact and reasonable, reducing the area;

    l With display test force, test force peak, test force, speed and other functions;

    l With the test force clear, peak hold, parameter settings, regardless of the whole file value measurement, calibration and fine tuning and other functions;

    l Using 5000 wire photoelectric encoder, the displacement relative precision is high;

    l Using high precision and high stability spoke tension and strain sensor, with high-precision measuring and amplifying system to ensure high precision of test force;

    l Built-in controller to ensure that the test machine can be specimen deformation, test force and displacement of the closed-loop control;

    l With limited protection function, automatic stop after reaching the limit, can prevent the collision when the middle crossbeam moves and cause overload or even damage the sensor;

    l The built-in control card based on PCI technology can reduce the connection, improve the real-time control and real-time acquisition function, and improve the stability of the product;

    l Self selection of load sensors or oil pressure sensors, which can effectively improve the range of test range and the accuracy of force value;According to the load size, it can switch the appropriate range to ensure the accuracy of measurement data automatically;

    l Zero adjustment, calibration, storage and so on, without any analog adjustment link, the control circuit is highly integrated;

    l At the end of the test, the test data and the test curve are saved automatically for subsequent retrieval and analysis;

    l Can be batch test, the same parameters of the sample just have a one test set;

    l Consistent with GB, ISO, ASTM, DIN and other related standards at home and abroad.

    Operating Method and Attentions

    Instrument Maintenance

    <!--[if !supportLists]-->       l <!--[endif]-->Test machine is a large precision instruments, should pay attention to water, moisture. Exposed workstations, upper and lower beam parts and attached parts should be coated with anti-rust oil to prevent rust;

    <!--[if !supportLists]--><!--[endif]-->If idle for a long time,turn on and move the upper and lower beams, so that beam position, silk mother often active to prevent rust at least once a week

    <!--[if !supportLists]--><!--[endif]-->Long term frequent use may cause oil decreasing or deteriorating,the amount of oil should be checked every 1~3 months in accordance with the use,if the oil surface is lower than the oil window you need to add the same kind of hydraulic oil to the middle of the window;if the oil has deteriorated, then remove the special oil source after the lower part of the oil nozzle to release and replace the hydraulic oil;

    <!--[if !supportLists]--><!--[endif]-->Frequent use of this equipment for tensile failure test may cause some of the fasteners loose. The following parts should always be checked for tightening:

    There are two pieces (8 blocks) in front and back of the upper crossbeam and the moving beam. The L type press plate (with the jaw board) is used to fix each pressing plate with 3 screws;

                ②6 screws at each end of the moving beam;

    The drive chain shall be checked every 6 months, and the position of the tension wheel shall be adjusted accordingly;

    <!--[if !supportLists]--><!--[endif]-->The following areas are lubricated every 3~6 months, depending on the environmental conditions and frequency of use:

    The combination of the screw and the frame is lubricated with grease No. 100 (removing the lower part of the main body panel);

    The screw drive chain is lubricated with grease (removing the lower part of the main panel);

    The screw threads are kept clean and lubricated with butter or molybdenum disulfide;

    <!--[if !supportLists]--><!--[endif]-->Each of the upper cross beam and the moving crossbeam is provided with 2 jaws, and the clamping plate of the jaw is an important part of the machine,the sundries on the contact surface of the jaw plate and the cross member shall be removed frequently,remove the pliers on the side of the moving beam, remove the jaws,clean the contact surfaces of the jaw, pallet and crossbeam with oil cloth, and apply the proper amount of grease and graphite to the fastening plate;

    <!--[if !supportLists]--><!--[endif]-->Do not start the test to prohibit the click "start test" button, or easy to cause accidents;

    <!--[if !supportLists]--><!--[endif]-->When entering the program, if the abnormal prompt or the default test force value is different from the past, do not test, exclude the trouble refer to the troubleshooting;

    <!--[if !supportLists]--><!--[endif]-->If the program does not exit the test state after the test is broken,  click [Stop] to exit the test state immediately;

    <!--[if !supportLists]--><!--[endif]-->After completing the test exit procedure,shut down the pump which the cylinder must fall to the end to ;

    <!--[if !supportLists]--><!--[endif]-->The software has overload protection function, when more than 0.2% of full scale will have a protective prompt, please press OK and stop the experiment;

    <!--[if !supportLists]--><!--[endif]-->Dont disassemble the instrument without authorization, maintenance related matters please contact MITECH after-sale service department with 4000600280.

  •

  • Structural form Gate type
    Maximum testing force (KN) 1000
    Tester level Level 1
    Force measurement range 4% -100% of Maximum test power
    Show value relative error ≤ ± 1% of indication
    Force resolution 1/300000
    Deformation measuring device Electronic extensometer
    Deformation indication relative error ≤ ± 1% of indication
    Displacement measuring device Photoelectric encoder
    Displacement Indication relative error ≤ ± 1% of indication
    Displacement resolution 0.01mm
    Adjust the speed of the beam 120mm/min
    Piston maximum stroke 200mm
    Piston maximum movement speed 60mm/min
    Control method Manual loading
    Protective function Overload protection, limit protection
    Effectively stretch the space 1100mm
    Clamping method Hydraulic automatic clamping
    Column spacing 650mm
    Stranded wire diameter Φ9-30mm
    Up and down platen size 204*204mm
    Dimensions of host 1060*660*2950mm
    Monitor rate 0.75kW
    Oil source control cabinet size 580*550*1280mm
    Oil source control cabinet power 1.5kW
    Power supply 380V (three-phase four-wire)
    Total Weight 4500kg
