MT-1C Magnetic Particle Flaw Detector

Brand:

Mitech

Model:

Measuring range:

1mm

Resolution Accuracy:

Communication storage:

USB

Working time:

>4h

Main unit weight:

Unit weight 0.75KG,

Dimensions:

Dimension 204mm×100mm×36mm

Package dimensions:

44.5*37*17cm

Total weight:

7.5kg

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related
  • Product Overview

    MT-1C magnetic particle flaw detector adopts high-capacity lithium battery pack, can convert DC to AC through variable-frequency, provide magnetic powder flaw detector with magnetic power supply. With low power consumption, it can continuous work for more than four hours after charging. It is especially proper for working in the wild and aerial area.

    Function & application

    It is widely used in the industry of aircraft manufacturing, boiler and pressure vessel, electric, oil field, shipbuilding, turbine and combustion engine parts, mine, machinery, standard parts, oil pump, vehicle parts, bridging, chemical, railway, large mechanical components, steel structure equipment etc. It mainly detects the surface detection of forging, quenching, welding, fatigue, for example, irregular workpiece of chain, crankshaft, bearing, high strength bolt, spring, forging, petrochemical pipe, valve, vane, gear, anchor chain, welding seam etc.

    Working Principle

    Put the workpiece into high-intensity magnetic field, connect electric to make it magnetized, if there are flaws (crack,slag) in or near the surface, there will be a leakage around the flaws. Put good quality magnetic powder(usually the magnetic iron oxide powder)on the object, magnetic powder will gather together near the leaked magnetic field, piled up to form visible traces of magnetic powder. In the proper light, we can see the marks and judge the position, size, shape and degree of the flaws.

    Working Conditions

    Operatiom temperature: -10℃~+40℃
    Storage temperature: -20℃~+70℃

    Relative Humidity: ≤80%
    The environment should avoid strong vibration, magnetic interference, corrosive medium and heavy dust.

    Instrument Features

    l Portable high-capacity lithium battery pack without limitation of 220V power supply. With low power      consumption and small volume, charging either online or offline. It is especially proper for working in the wild and aerial area.

    l Adjustable illumination brightness and working power can meet different testing demand and save the setting.

    l New power supply can enhance the testing depth and sensitivity.

    l Pulse power supply can continuous work without chill time.

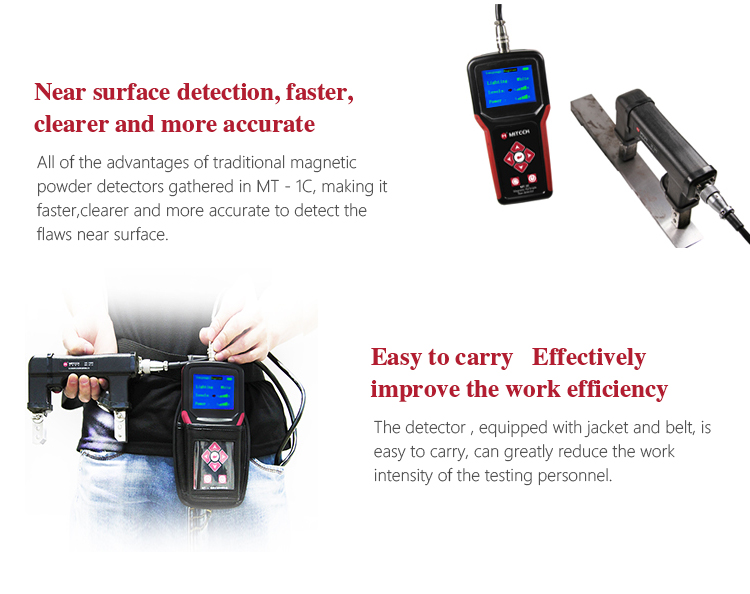

    l Combine all traditional advantages in one unit can detect surface flaws fast, clearly and accurately.

    l Adjustable brightness, power and range can meet different demand.

    l Small size with equipped bag can improve working efficiency.



    Operating Method and Attentions

     Connect the line with detector, start the detector, press detection, choose proper polar distance according to the workpiece.

    l When making dry powder detection, put the powder on the workpiece, move the yoke with 40mm/s, make sure they are well connected, observe whether the powder is pile up.

    l When detecting, there must be overlap, the overlap area should less than 25mm, judge the marks correctly.

    l If the pile up is appeared, blow the redundant powder, make the mark clear.

    l If the mark cant be judged, you should polish the surface and test again; if the mark is flaw, press confirm to capture the photo.

    Instrument Maintenance

    l Use soft cloth to clean the detector.

    l Avoid strong vibration, place in dry area.

    l When not using for a long time, you should charge it every three months to avoid damping the components.

    l Do not press the key too hard or use metal to knock it.

    l After turning off the detector for 5s, boot again, do not boot immediately.

  •

  • Lighting White/Fluorescent
    Dimension 204mm×100mm×36mm
    Main unit 0.75 kg
    Screen dimension 3.2 inch
    Working voltage DC 15v-21v
    Output curve AC current wave
    Probe dimension 174mm×162mm×38mm
    Polar distance 75-200mm
    Yoke weight 1.5kg(including line)
    Cable line length 1.2m(as you required)
    Lifting force >45N(no less than 5KG)
    Complex sensitivity Notch clear on A1 15/100 standard specimen
    Continuous working hours >4 hours
    Battery dimension 79mm×58mm×18mm
    Li-battery weight 0.52kg
    Battery voltage 18v
    Battery capacity 8400mAh
    Charging limited voltage 21v
    Power supply 220v 50Hz
    White light illumination >1000lx
    Distance between light and workpiece 365nm100mm
    Fluorescence center wavelength 365nm
    Fluorescence amplitude >1000μw/cm²
  • Magnetic powder detector ABS box


    MITECH portable Leeb hardness tester box, length: 35.5cm; width: 19cm; high: 11cm; weight: 1.5kg. It is made of ABS plastic, which is waterproof and resistant to shock. It has excellent heat resistance, low temperature resistance and so on. It can effectively protect the oil, dust and various kinds of corrosion in harsh environment. The box size is in line with aviation, (Can be placed under the seat and luggage rack), safe, reliable and stable.



    Magnetic flaw detector electromagnetic yoke
    MITECH Portable Magnetic Flaw Detector Electromagnetic Yoke,Size: 174mm * 162mm * 38mm, Electromagnetic yoke distance: 75-200mm, Electromagnetic yoke Weight: 1.5kg.The use of pulsating power supply technology, continuous uninterrupted work, from the traditional electromagnetic yoke must be the gap time limit. At the same time lighting brightness, power, yoke spacing adjustable to meet your needs of different measurement conditions.

    Magnetic flaw detector electromagnetic yoke cable line
    MITECH magnetic flaw detector electromagnetic yoke cable line.Length: 1 m (OEM), mainly used to connect portable magnetic detector and electromagnetic yoke, accurate transmission of measurement signals to ensure the accuracy of measurement results.
    AC adapter

    Change alternative current into direct current, protect the circuit

  • Magnetic powder detector leather pockets and belts
    MITECH magnetic detectors pockets and belts, portable compact, the operator can tilt the instrument across the waist, greatly reducing the labor intensity of the flaws, improve work efficiency, especially for the field, high altitude testing and other special occasions flaw detection.
    Magnetic powder detector yoke movable support
    For the electromagnetic yoke probe adjustment, to meet the special workpiece measurement, improve the measurement accuracy.
