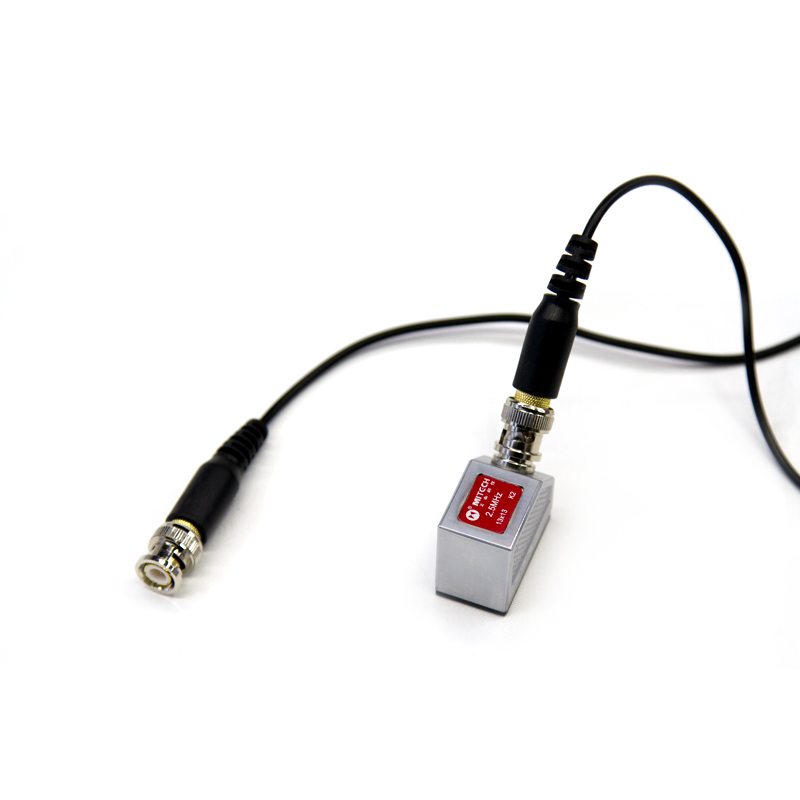

Angle Beam Probe 4MHz 8X9, 60°
Mitech standard Ultrasonic flaw detector Angle Probe with the parameters of 4MHz 8*9, 60°is the standard configuration. It is mainly composed of the piezoelectric crystal, damping block and wedge. The ultrasonic wave emitted from the crystal, through the wedge, it is converted to the transverse wave, and then incident to the measured workpiece. The wedge is made of organic glass, which can realize the waveform transformation. In order to avoid errors in calculating the defect distance, before using the angle probe, we need to calibrate its P-delay, angle and forefront. Through calibration, this part of the error can be automatically subtracted, thus improving the measurement accuracy .The Angle Beam Probe is suitable for normal flaw detecting like welds.
Adaptive Products
-
MFD550B Ultrasonic Flaw Detector
-
MFD660C Ultrasonic Flaw Detector
-
MFD800C Ultrasonic Flaw Detector
-
MFD500B Ultrasonic Flaw Detector
×
